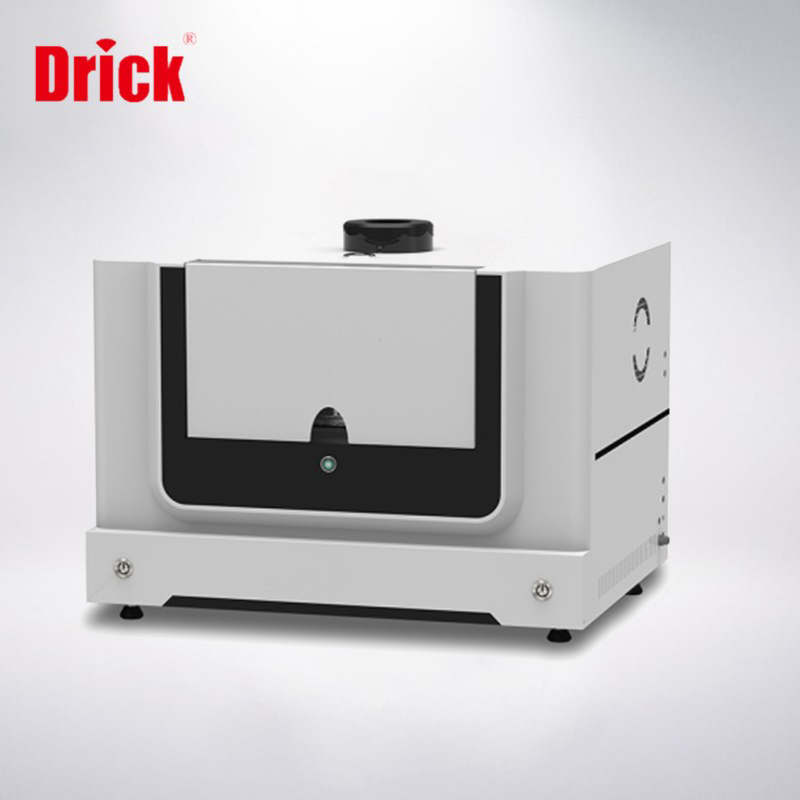

DRK-121/231-B Overall Migration and Non-volatile matter Constant Weight Tester
Feature
Constant weight test for total migration, non-volatile matter, volatile matter, residue amount, water content, soluble amount and insoluble amount.

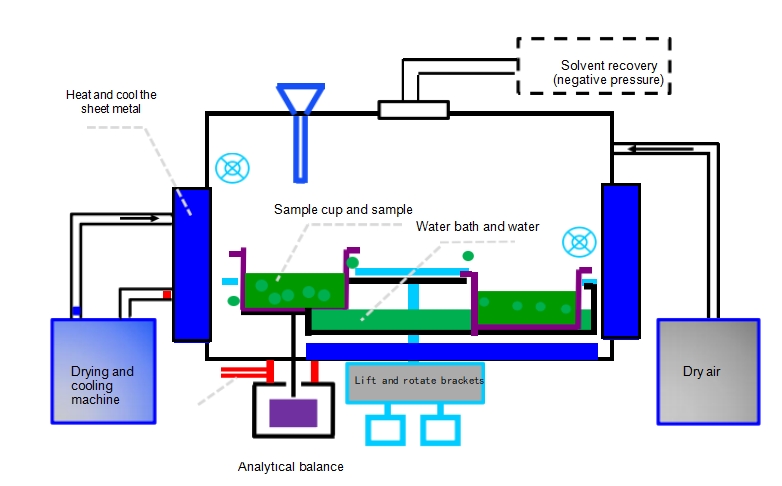

principle
Water bath evaporation; High temperature drying; Dry and cool; Constant temperature weighing.
product features
Fully automated 4 processes: water bath, drying, cooling, weighing;
Accurate and efficient: 2 drying processes can complete 0.3mg constant weight, with 12, 23 stations;
Safety: metal plate indirect heating, fire and explosion proof; Overtemperature power off; Water bath water level protection;
Small: water bath box, oven, cooling box, weighing box integrated into the same box, occupy a small space;
Patented balance heat insulation, moisture-proof, anti-corrosion technology to ensure balance stability and life;
Digital setting of test parameters, full automation, no manual intervention; Two test modes of constant weight and constant time;
M-T (MeTTler Toledo) balance;
Software: graphical, whole process, all elements monitoring; Multiple report formats;
Optional: GMP “Computerized System” function module;
Optional: High efficiency solvent recovery device.
Meet the standard
Chinese Pharmacopoeia constant weight example, YBB 00342002, YBB00132002, GB 31604.8, GB5009.3, GB 8538, GB/T 9740, GB/T5761, GB5413.39, ISO 759.
technical specification
name | parameter | name | parameter | |
Constant weight error | 0.3mg (2 times drying process) | Test range | 0~80 g | |
Balance range | 210 g | Celestial equalization | 0.1 mg | |
Temperature control error | 0.5 ℃ | Humidity error | 2% RH | |
Evaporation temperature | 30 – 100 ℃ | Drying temperature | Room temperature – 150 ℃ | |
Weighing temperature | 20 – 80 ℃ | |||
Evaporation mode | Water bath | Pan volume | 100 mL( 50 ,200 mL optional) | |
Air source pressure | >0.3 MPa | Interface size | Φ8 mm | |
Electric source | AC220V 50Hz | Solvent recovery | 95%(Choose a solvent recovery machine) | |
Type distinction | model | |||
DRK-121-B | DRK-231-B | |||
Test station | 12 | 23 | ||
Balance quantity | 1 | 1 | ||
Power supply | 5000W | 8,000W | ||
Host size (L×B×H) | 860×750×690 | 1582×718×982 | ||
Net weight of main engine | 150Kg | 275Kg |
System configuration: main machine, drying and cooling machine (drying air and cold water), evaporation dish (corresponding to the number of cavity positions), test computer, professional test software, valve fittings.
Optional accessories: Solvent recovery machine, 0.01mg balance (Type S).
Self-supplied: compressed air, distilled water.
