Condom Burst Volume and Pressure Tester
The Condom Burst Volume and Pressure Tester is designed and manufactured in accordance with “GB/T 7544 – 2019 Technical Requirements and Test Methods for Natural Rubber Latex Male Condoms”. It is mainly applicable to the determination of burst volume and burst pressure – volume of various condoms, rubber gloves and other products, and can meet the testing needs of drug inspection institutions and quality inspection institutions for these products.
Product Features
- Standard – equipped fixtures enable easy testing without damaging the samples.
- Professional measurement and control software can conduct real – time statistics on burst flow, volume and pressure data.
- With a positive – pressure design principle, it features simple operation, stable and reliable performance.
- The test process can be operated “with one – key”, which is highly efficient and intelligent.
- It has a high – definition LCD display, and the results are automatically counted and printed.
- With support for test accessories, it offers flexible and diversified test modes. It can not only automatically display and record the volume and pressure values when the condom bursts, but also automatically analyze the information of unqualified products.
- Operators can independently add or edit test standards, operate offline, automatically collect data, record the pressure value, volume value and other data at the time of burst, and also generate reports.
Test Principle
Put the condom on the blowing rod and start the test. The instrument begins to inflate the condom. When the condom expands and bursts, the burst pressure and the volume of the inflated gas at the time of burst are displayed on the screen. The burst volume is expressed in cubic decimeters and rounded to 1 dm³; the burst pressure is expressed in kilopascals and rounded to 0.01 kPa. The inflation rate can be adjusted by turning the knob. If there is air leakage during the inflation process, the test can be manually terminated. If the condom does not leak air, measure and record the burst volume and pressure.
Technical Specifications of the Condom Burst Volume and Pressure Tester

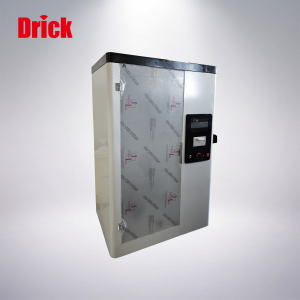

- Model: DRK – Y13 Condom Burst Volume and Pressure Tester
- Test Station: Single – station detection
- Airflow Test Accuracy: ±1％
- Volume Test Accuracy: ±1.5%
- Maximum Pressure Accuracy: ±0.25％
- Working Pressure Range: 0 – 10KPA (0.01MPA)
- Power Supply: 220V/50HZ
- Air Source Pressure: 0 – 0.5MPA (500KPA)
- Gas Filtration: Oil – free and dry
- Overall Dimensions: 802MM × 502MM × 1196MM
- Net Weight: 50KG
