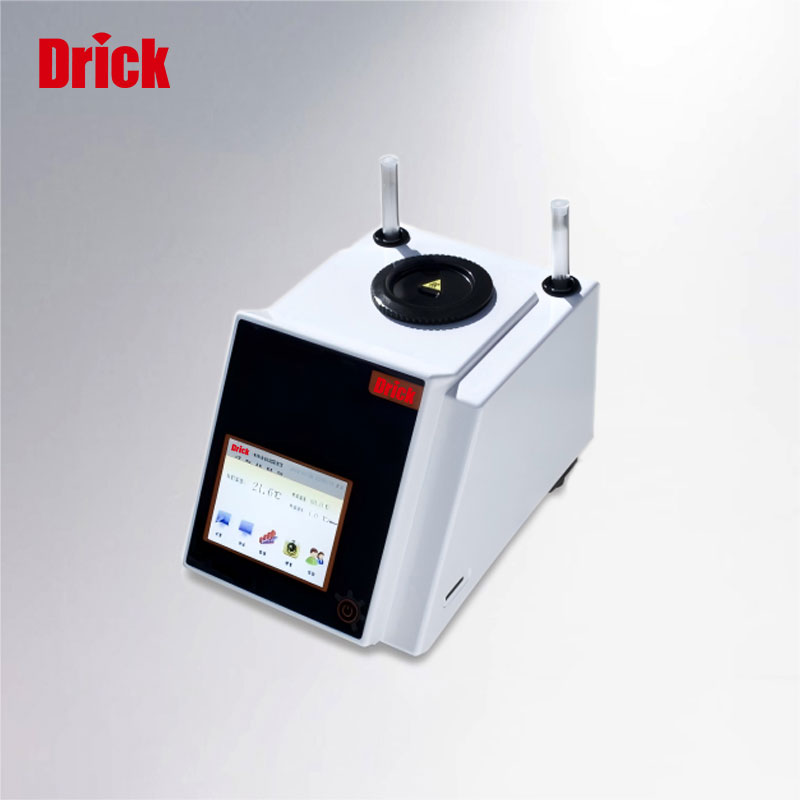

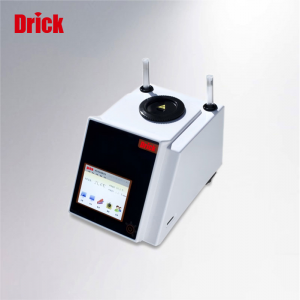

Fully Automatic Video Melting Point Apparatus DRK-R61
DRK-R61 Fully Automatic Video Melting Point Apparatus
DRK-R61 fully automatic melting point apparatus combines high-precision temperature control technology. It not only provides users with accurate, stable and reliable test results but also brings users an efficient and convenient testing experience. The automatic detection and real-time spectrum display facilitate users to accurately measure the melting point and melting range of the sample.
Product Features:
- Capable of processing 4 samples at a time;
- Highly automated integration, realizing one-key measurement function;
- Fully automatically record the melting range, initial melting point and final melting point.
Application Areas:
The melting point apparatus occupies an important position in the chemical industry and pharmaceutical research. It is an instrument for producing food, drugs, spices, dyes and other organic crystalline substances.
Technical Parameters:
| Temperature Range | Room temperature – 400 °C | Spectrum Storage Capacity | 10 sets |
| Detection Method | Fully automatic | Data Storage Results | 400 |
| Processing Capacity | 4 samples per batch (4 samples can be done simultaneously) | Video Function | None |
| Temperature Resolution | 0.1 °C | Display Method | TFT high-definition true color screen |
| Heating Rate | 0.1 °C – 20 °C (200 steps, infinitely adjustable) | Data Interface | USB, RS232, Network Port |
| Accuracy | ±0.3 °C (<250 °C) ±0.5 °C (>250 °C) |
Capillary Size | Outer diameter φ1.4mm Inner diameter: φ1.2mm |
| Repeatability | Melting point repeatability ±0.1 °C at 0.1 °C/Min | Packaging Size | 430 * 320 * 370mm |
| Exploration Mode | Yes | Power Supply | 110 – 230V 50/60HZ 120W |
| User Management | Yes | Gross Weight | 6.15kg |
Note: Due to technological progress, the information may be changed without further notice. The product shall be subject to the actual object in the later stage.
-
