Spectrophotometer DRK-2580

Product introduction

Grating Spectrophotometer, the color measurement expert.

DRK-2580 grating spectrophotometer, stable instrument, accurate color measurement, powerful function. The grating spectrophotometer is widely used in the fields of plastic electronics, paint ink, textile and clothing printing and dyeing, printed paper products, automobile, medical, cosmetics and food, as well as in scientific research institutions and laboratories.

Under the conditions of D/8 geometric optical illumination recommended by CIE, the grating spectrophotometer can accurately measure the SCI and SCE reflectivity data of the sample, and can accurately measure and express various color difference formulas and color indices in a variety of color Spaces. With the help of this instrument, the accurate transmission of color can be easily achieved, and it can be used as a testing equipment for accurate color matching system, and has a wide range of applications in color difference quality control of various products. The instrument is equipped with high-end color management software, connected to the computer to use, to achieve more functions.

Product features

1. Ergonomic design

Beautiful, smooth shape and comfortable grip, in line with human mechanics structure design, fit the palm to adapt to continuous detection work, so that you can use it easily.

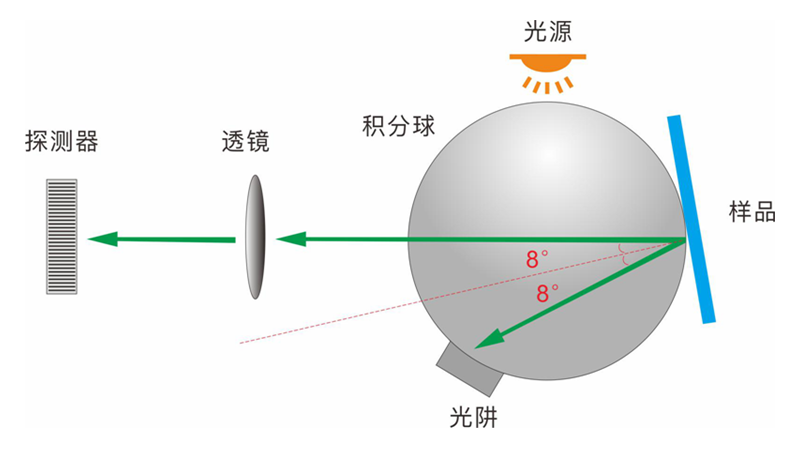

2, using the international common D/8 SCI/SCE synthesis technology

Using a wide range of international D/8 lighting observation conditions, SCI/SCE (including mirror reflection/not including mirror reflection) synthesis technology, suitable for color matching in various industries and paint, textile, plastic, food, building materials, cosmetics and other industries color management and quality control.

3, camera positioning, can clearly observe the measured area

Built-in camera view positioning, through the camera real-time view, can accurately determine whether the measured part of the object is the target center, equipped with 3.5 “TFT true color capacitive touch screen, but also positioning view display, greatly improve the measurement efficiency and accuracy.

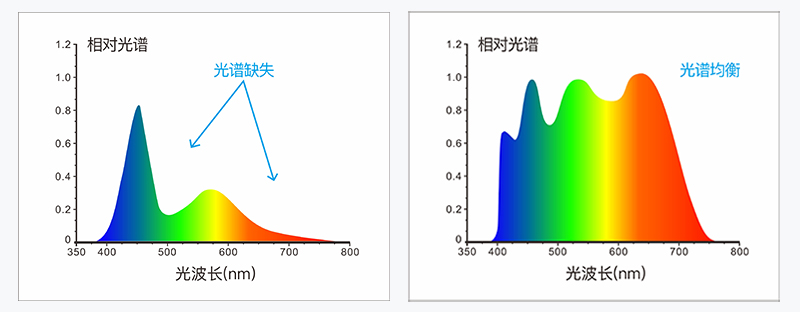

4, the use of full band balanced LED light source

The full-band balanced LED light source ensures sufficient spectral distribution in the visible range, avoids the spectral loss of white leds in specific bands, and ensures the measurement speed and accuracy of the measurement results.

5, concave grating spectral dual array 256 pixel CMOS image sensor

The dual array sensors can balance and compensate each other for complex factors under various test conditions, ensuring the speed, accuracy, stability and consistency of the instrument measurement.

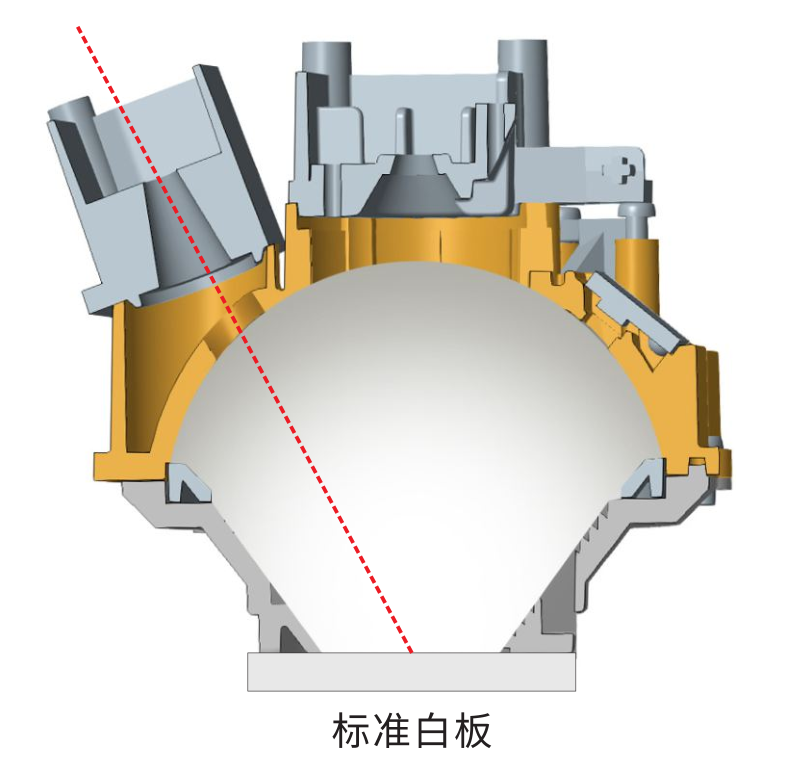

6, ETC real-time calibration technology

The imported white board is resistant to yellowing, dirt does not penetrate, and can be wiped to ensure the long-term accuracy of the instrument. At the same time, the innovative ETC real-time Calibration technology (Every Test Calibration) is also used in the chromatic aberrator products, and the optical system is set up in the standard whiteboard, and has reliable accuracy and repeatability in every test.

7. Color management software

SQCX high-end quality management software for quality monitoring and color data management in various industries. Digitize the user’s color management, compare color differences, generate test reports, provide a variety of color space measurement data, and customize the customer’s color management work.

8. Metrological verification and long warranty

Each spectrophotometer has been verified and tested, and the instrument is verified according to the measurement standards of the authoritative verification department when leaving the factory, and the measurement data is traced to the National Metrology Institute to ensure the authority of the instrument test data. Three years warranty, service outlets all over the world, can serve you nearby.

Technical parameter
